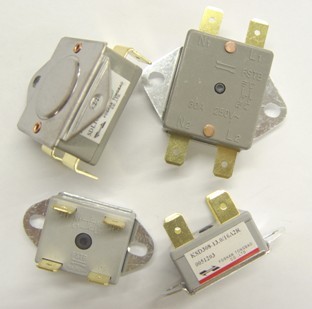

KSD308系列

KSD308系列
适用范围:

KSD306KSD308系列产品属于手动复位型的保护类温控器,为双刀结构,安全可靠,适用于大功率电热水器(尤其是储水式电热水器)的过热保护。它利用碟形双金属片在温度达到一定值时产生瞬间突跳的原理,通过机构转换,让两对触点迅速分离,从而使两相电路同时断开,达到完全切断电源的目的。当要重新接通电源时,需要按下复位杆。

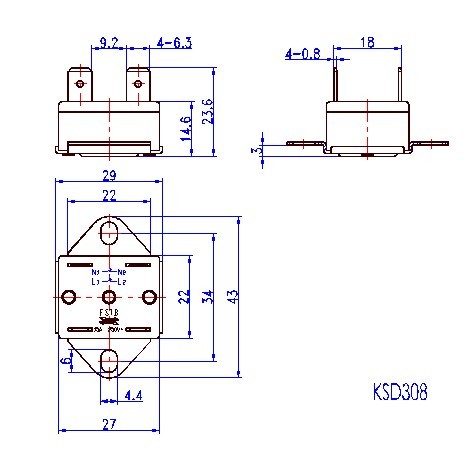

外形尺寸:

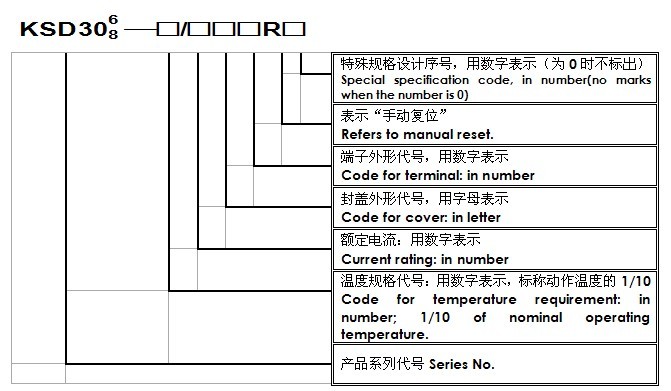

型号意义:
技术参数:
安全认证:

1.1.1      KSD306

OT范围

OT range

寿命 Life

250V 30A

£125°C

1,000

CQC: 03002007918

TUV: R50099180

1.1.2      KSD308

OT范围

OT range

寿命 Life

250V 16A

£100°C

10,000

CQC: 03002006563



安装和使用说明:

¿ 接地方式:通过温控器金属外盖与设备接地金属部件相连。

Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.

¿ 温控器应工作于空气相对湿度不大于90%、无腐蚀性气、可燃性气体和导电尘埃存在的一般室内环境。

The thermostat should work in environment with humidity not higher than 90%,free of caustic, flammable gas and conducting dust.

¿ 温控器采用接触感温时,应使其封盖紧贴被控器具的发热部位,并应在封盖感温表面涂上导热硅脂或其他性能类似的导热介质。

When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.

¿ 不可把封盖顶部压塌或使其变形,以免动作温度改变或影响其他性能。

The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.

¿ 不得让液体渗入温控器内部!壳体必须避免受到过大的力以防止出现裂纹;壳体应保持清洁,防止导电物质污染,以免因绝缘性能降低而发生短路击穿。

Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.

¿ 使用过程不能折弯接线端子,否则将影响电气连接的可靠性。

The terminals should be bent, or else, the reliability of electric connection will be influenced.
